Fabric Expansion Bellows

What is a Fabric Expansion Bellow ?

Fabric Expansion Bellows offers exclusive solutions for piping systems used in a wide range of industries. This Bellow is the sub-category of Expansion Bellows. These Bellows are constructed from high-quality woven Fabrics of several layers and these layers together are known as Fabric Belts. Their primary function is to absorb thermal expansion and contraction within the piping system. It mainly protects pipelines from all types of shocks and vibrations while heated cement, oil etc. passes through it.

The Fabric Expansion Bellows are keep fixed between the both side flanges and it saves Duct / Pipe Lines from getting damaged due to excessive heat and shock. The Fabric Expansion Bellows come with huge resistance power and it can resist up to 1400 degrees of heat. This prevents stress on the pipelines, reduces the risk of leaks and allows for negligible misalignment. Fabric Bellows are in high demand among many industrial experts because they are light weight and easy to install. These Fabric Bellows can fit into the exact duct sizes and can operate smoothly.

Fabric Expansion Bellows Manufacturers :

Our manufacturing capacity :

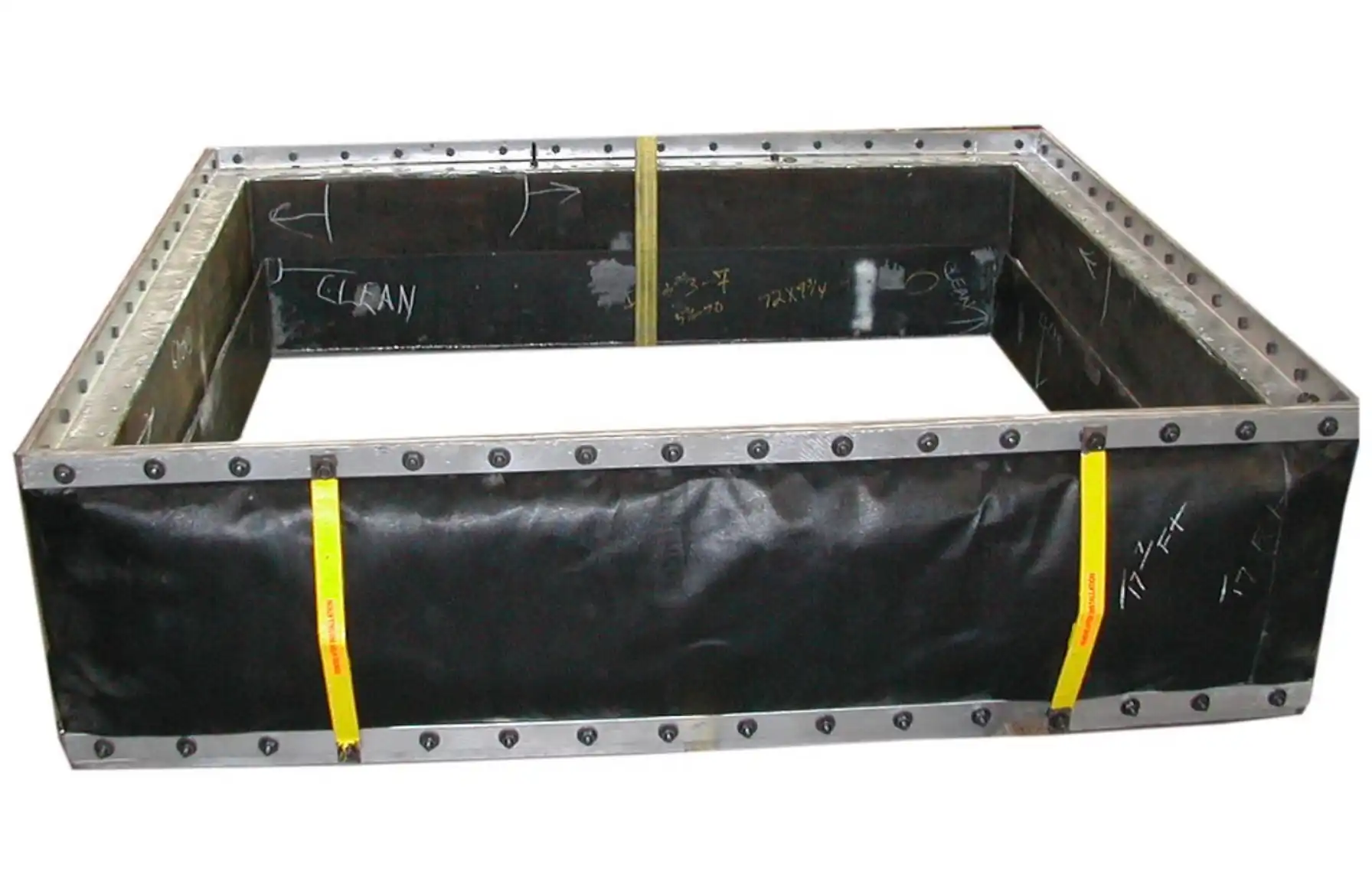

Rectangular shape : I.D. up to 5000 X 4000 mm.
Square shape : I.D. up to 4000 X 4000 mm.

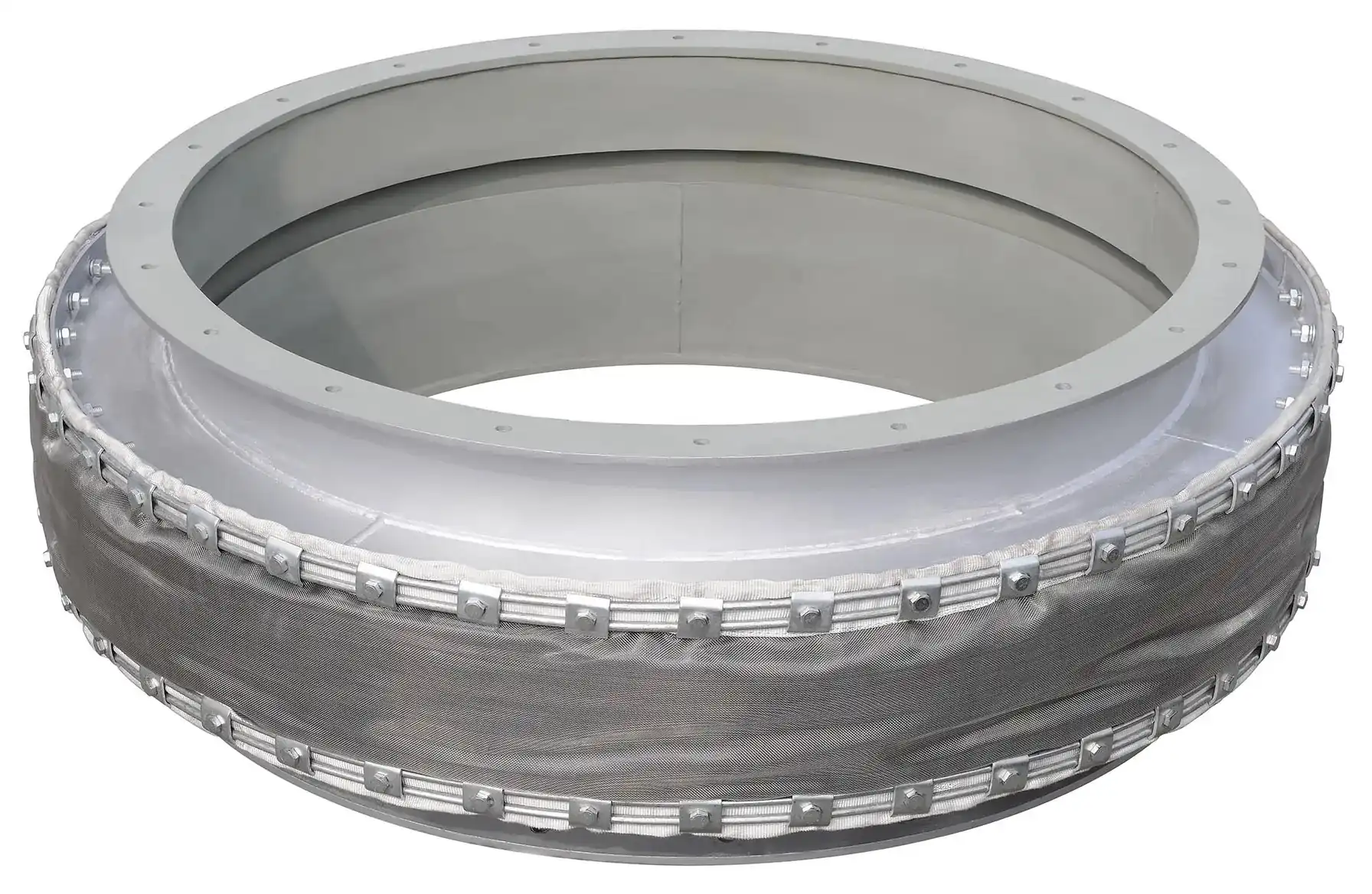

Circular shape : I.D. up to 4000 mm.
Working Temperature : Up to 1200 Degree C
Working Pressure : Up to 2000 mm. Wc

Profiles used : There are 1 to 7 different profiles are used for Fabric Bellows based on the working Temperature, Pressure & Movements.

Optional accessories : Our Fabric Bellows are comes with different types of optional spares like Counter Flanges / Matching Flanges / Companion Flanges, Gaskets, Fasteners etc.

Testing Facilities : We provide Test Certificate of Fabrics, Metal parts etc. as per demand.

Used in : Steel Plants, Cement Plants, Boiler Plants, Thermal Power Plants, Petro Chemical Refineries, HVAC Systems, Environmental Systems, Chimneys, Water Pipelines, Refineries, Fertilizer units etc.
